Description

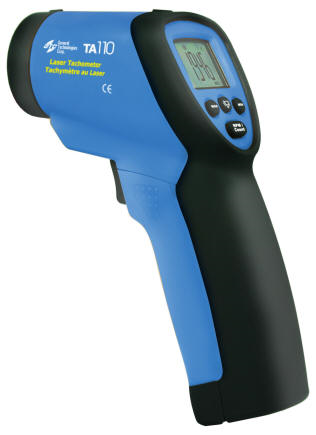

The TA110 Laser Tachometer and counter can be used to measure and test the number of rotations per minute (RPM) or total number of rotations or events on any spinning shaft, pulley, wheel, drive belt, fan, or other rotating objects in general, safely, accurately and easily due to its unique ergonomic design. Numerous application uses can be found in industrial, automotive, heavy duty, HVAC, agricultural and aviation maintenance sectors.
Wide measuring range: 60 to 99,999 RPM or count, 2" to 20" reading distance, Min/max memory recall, backlit display, <0.3 sec response time, count function and auto power off.
Applications
Internal combustion engines
Electric motors
Rotating machinery
Features
State of the Art patented ergonomic design
Measures from 60 to 99999 RPM
0.05 % accuracy
2 to 20" (50 to 500 mm) measuring range
Quick selection between RPM and Count functions
Maximum and minimum memory recall functions
Continuous reading and data hold modes
Quick response: <0.3 seconds
Large LCD display with symbols and backlight
On target display indicator
RPM, Total revolutions, maximum, minimum and last reading memory
Laser powered optical system is easy to use under all light conditions
Only setup required is a reflective mark on the rotating part
Specifications
Display:
5 x 0.7" (16 mm)digits display
Backlight
On target indicator
RPM indicator
Low battery indicator
Accuracy: ±(0.05%+1 Digit)
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Response time: >0.3 sec.(over 120 RPM)
Range Selection: Auto Ranging
Memory: Max. value, Min. value and display hold stored automatically in memory
Distance to target: 2" to 20" (50 mm to 500 mm)
Laser Pointer: Laser Diode, < 1mW output wavelength 630-670 nm, Class II
Power Source: 9-volt alkaline battery type NEDA 1604
Battery life: Approx. 5 hours.(w/alkaline batteries)
Dimensions: 3.13"x 1.88"x 7.0" (80 x 48 x 178 mm)
Weight: 7.6 oz. (215 g) including battery
