(Product may not be exactly as shown)

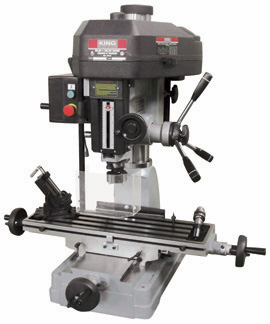

MILL/DRILL MACHINE
Line Code / Manufacturer: KIC-
Item Code: PDM-30
Bin Location: 9I 0

List Price: $3,909.60
Price: $2,999.00
Price Per: 1
Description
Milling Drilling Machine

- Safety guard with limit switch protection
- Magnetic line interruption switch needs a restart after a power failure
- Spindle is equipped with four heavy-duty tapered roller bearings
- Table control hand wheels have large micrometer dials graduated in .001"
- Head swivels 360° and is easily raised and lowered
- Comes with 3" face cutter, 1/2" chuck with key, 3-1/2" angle vise and safety guard

Drilling Capacity = 1-1/4"
Max. Dist. Spindle Nose To Table = 18-7/8"
Swing = 16-1/2"
Spindle Taper = R8
Spindle stroke = 5"
Diameter of column = 4-3/4"
Speeds = 12 (150-2,500) RPM
Face Mill Capacity = 3"
End Mill Capacity = 3/4"
Max. Longitudinal Travel = 17"
Cross Travel = 7-1/4"
Working Area Of Table = 8-1/4" x 28-3/4"
Size Of T-Slot On Table = 5/8"
Motor = 11 Amp.
Voltage = 220V, 1 phase, 60Hz
Assembled dimensions (LxWxH) = 43" x 39" x 42" / 502 lbs
Package Dimensions (LxWxH) = 30-1/4" x 32" x 43-3/8" / 600 lbs
