(Product may not be exactly as shown)
5/8" HOLLOW MORT. DRILL
Line Code / Manufacturer: KIC-
Item Code: MA-1050ST
Bin Location: 5G 0

List Price: $1,052.57
Price: $799.00
Price Per: 1
Description

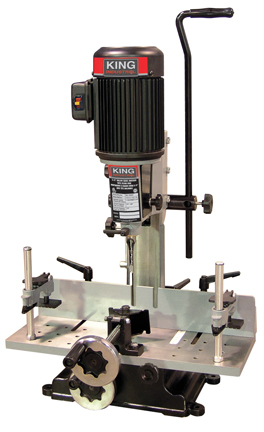

5/8" Hollow Chisel Mortiser With Tilting Head

- Powerful 3/4 HP enclosed fan cooled ribbed body Motor for long life and trouble-free operation
- Longitudinal sliding table with locking system prevents unnecessary repositionning and reclamping of the workpiece
- Gas head Cylinder for smooth and controled cuts
- Rack and pinion gears move entire head for maximum leverage and positive feed control
- Heavy-duty precision machined cast-iron construction
- Includes sleeve adaptors which accept 5/8" and 3/4" diameter chisel shanks
- Adjustable depth and height stops
- Comes complete with mortising chisel and bit set (1/4", 5/16", 3/8" and 1/2"), 1/2" chuck and key, column mounted hold down, pair of 9 positions table hold downs and quick release vise

Chisel Capacity = 1/4" x 5/8"
Chuck Capacity = 1/2"
Maximum Chisel Stroke = 6-1/2"
Maximum Distance Fence To Center Chisel = 3"
Max. Distance Chisel To Table (Head Extended) = 9-1/2"
Under table hold down capacity = 5-3/4"
Sliding table size = 20" x 8-1/4"
Sliding Table Travel (Right-Left) = 16"
Fence size = 20" x 3-9/16"
Speed = 1,720 RPM
Motor = 110V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 20" x 16" x 30" / 135 lbs
Package Dimensions (LxWxH) = 22-1/4" x 18-1/8" x 27-1/4" / 158 lbs
