(Product may not be exactly as shown)

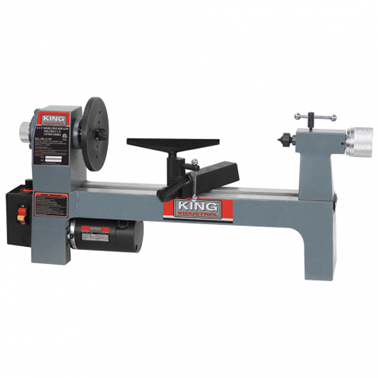

WOOD LATHE
Line Code / Manufacturer: KIC-
Item Code: KWL-813VS
Bin Location: 1D 212

List Price: $405.98
Price: $289.99
Price Per: 1
Description
8" x 13" Variable speed wood lathe

- High performance 1/3 HP (300 Watt) DC motor
- Ideal for pens and other small detailed turnings
- All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
- 8" inboard swing for bowl turning
- Maximum turning capacity of 13" between centers
- Variable speed range of 750 to 3200 RPM
- Chrome plated handwheels on both the headstock and tailstock
- Complete with 4-1/4" and 7" tool rests with 1/2" post diameter, 5-3/4" faceplate, MT#1 live center, MT#1 spur center, steel knock-out bar, adjustment keys and hex. keys

Swing Over Bed = 8"
Swing over tool post base = 5-1/4"
Distance Between Centers = 13"
Spindle size (HR thread) = 1" x 8 TPI
Spindle bore = 3/8"
Variable speed range = 750 - 3200 RPM
Headstock, tailstock taper = MT #1
Tailstock travel = 1-9/16"
DC motor = 1/3 HP, 3.2 Amp., 4,600 RPM
Voltage = 120V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 27-3/4" x 10" x 12-1/4" / 42 lbs
Package Dimensions (LxWxH) = 28" x 13-1/4" x 7-5/8" / 47 lbs
