(Product may not be exactly as shown)
12"X18" WOOD LATHE
info_iconWeb Page
Line Code / Manufacturer: KIC-
Item Code: KWL-1218VS
Bin Location: 1D 222

List Price: $902.20
Price: $699.99
Price Per: 1
Description

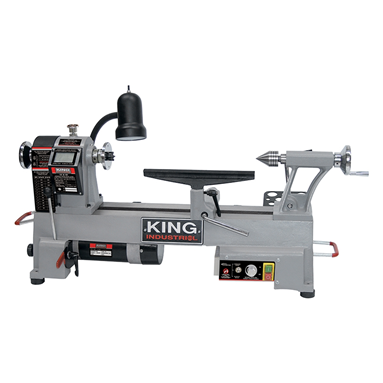

12" X 18" Variable Speed Wood Lathe

- 1 HP high performance DC Motor
- Reliable single board computer microprocessor for precise control

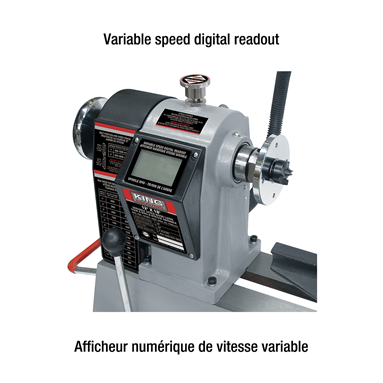

- Precise spindle Speed digital readout
- Variable Speed from 450 - 3,800 RPM
- 24 indexing positions with spindle lock
- Work light with 18" flex. shaft for improved visibility during intricate work
- Heavy-duty precision cast iron bed ensures stability, accepts optional extension bed for turning operations up to 44"

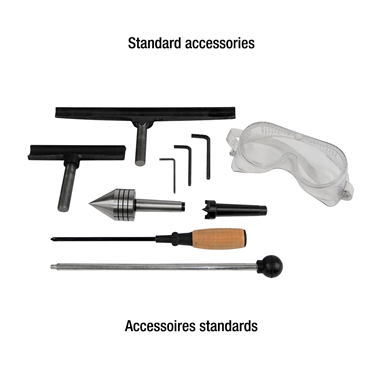

- Comes complete with 3" faceplate, 6" and 12" tool rests with 1" post diameter, MT#2 spur centre and MT#2 heavy-duty live centre, safety goggles, knock-out rod, tool storage rack, screwdriver and 4 hex. keys

Swing Over Bed = 12"
Distance Between Centres = 18"
Spindle Size = 1" x 8 TPI
Spindle Bore = 3/8"
Spindle Speeds = 2 (450-1,800 / 950-3,800 RPM)
Headstock and tailstock taper = MT #2
Gap In Bed Distance = 1-1/4"
DC Motor = 1 HP / 7 Amp.
Voltage = 110V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 39" x 15" x 18" / 105 lbs
Package Dimensions (LxWxH) = 36" x 14-1/2" x 18-3/8" / 110 lbs
