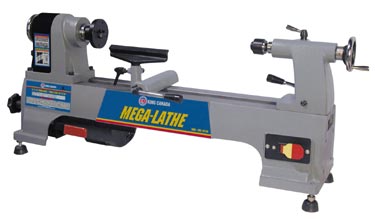

10"X16" WOOD LATHE
Line Code / Manufacturer: KIC-
Item Code: KWL-1016C
Bin Location: 2D 140

List Price: $661.61
Price: $499.99
Price Per: 1
Description
10" X 16" Wood Lathe

- All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
- 10" inboard swing for bowl turning
- Maximum turning capacity of 16" between centers
- Easy access 6-Speed step pulley matches Speed with specific turning operation
- Large 6" toolrest for flexibility in turning positions
- Toolrest post clamp can be positioned on either side
- Complete with MT#2 live center, MT#2 spur center, 3" faceplate, steel knock-out bar, hex. keys and safety glasses

Swing Over Bed = 10"
Swing Over Base = 7-1/2"
Distance Between Centers = 16"
Spindle Size (Rh Thread) = 1" x 8 TPI
Spindle Speeds = 6 (480 / 1,270 / 1,960 / 2,730 / 3,327 / 4,023 RPM)
Headstock and tailstock taper = MT #2
Self-Ejecting Tailstock Travel = 3-1/2"
Motor = 1/2 HP / 1,720 RPM
Voltage = 110V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 34" x 10" x 15" / 106 lb
Package Dimensions (LxWxH) = 37" x 12" x 17-1/4" / 110 lb
