(Product may not be exactly as shown)

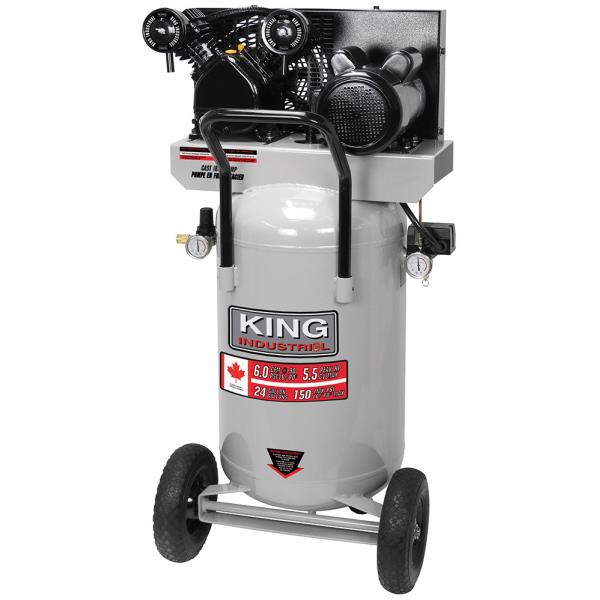

AIR COMPRESSOR
Line Code / Manufacturer: KIC-
Item Code: KC-3124V2
Bin Location: 9I 0

List Price: $1,172.87
Price: $899.00
Price Per: 1
Description
5.5 Peak HP 24 Gallon Air Compressor

- 2 Cylinder cast iron single stage oil lubricated pump
- 150 PSI Max pressure for optimum tool performance
- ASME registered tank
- ASME safety valve
- Wisconsin Electric 5.5 peak HP Motor with reset
- Belt drive with sturdy metal belt guard
- Large intake "Auto-drop" aluminum filters
- Air pressure regulator and easy to read pressure gauges
- Pump with "V" style design minimizes vibrations, improves cooling and extends compressor life
- 10" pneumatic wheels and a front handle for portability

Motor (Peak) = 5.5 HP
Factory pressure setting (adjustable up to) = 95-125 PSI (150 PSI)
Air Delivery @ 40 PSI = 7.6 CFM
Air Delivery @ 90 PSI = 6.0 CFM
Tank size = 24 Gallon
Motor amperage = 15/7.5 Amp.
RPM = 3450
Voltage = 120V/240V, 1 phase, 60 Hz
Pre-Wired = 120V
Assembled dimensions (LxWxH) = 24-1/4" x 21-1/4" x 47" / 160 lbs
Package dimensions (LxWxH) = 29" x 20-1/4" x 50" / 170 lbs
