(Product may not be exactly as shown)

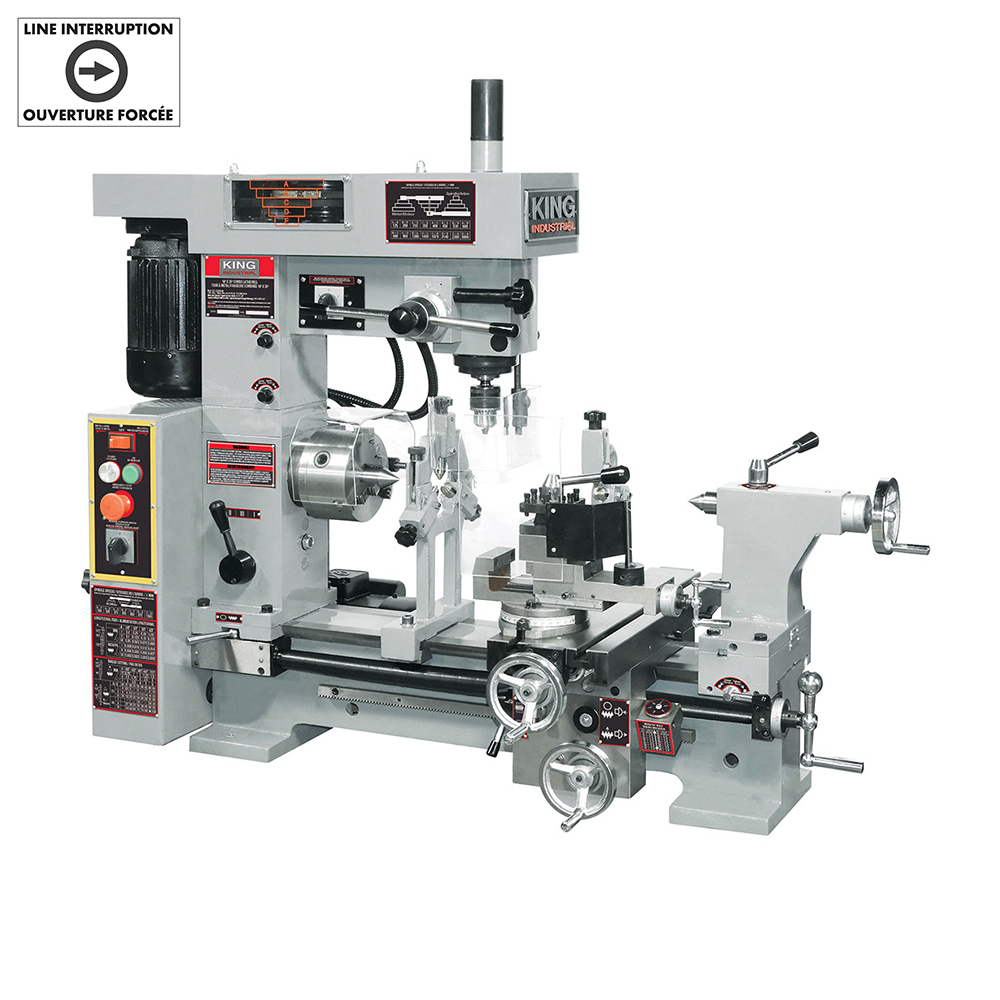

16"X20"COMBO LATHE/MILL
Line Code / Manufacturer: KIC-
Item Code: KC-1620CLM
Bin Location: 5G 0

List Price: $4,511.08
Price: $3,299.00
Price Per: 1
Description
16" X 20" Combo Lathe/Mill

- Two powerful 3/4 HP 110V Motors
- Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard
- Easily change from Lathe mode to Mill mode
- Forward/reverse switch for both operating modes
- Bedways are hardened and precision ground
- Comes with 5"- 3 jaw chuck, imperial and metric change gears, tool post, steady rest, follow rest, thread chasing dial indicator, MT#3 and MT#4 dead centres, 1/2" drill chuck and tool box with adjusting tools

Distance Between Centres = 20"
Swing Over Bed And Carriage = 16-1/2" / 11-1/2"
Spindle Bore = 1-1/8"
Headstock/Tailstock Tapers = MT#4 / MT#3
Cross Slide Travel = 8"
Lathe Spindle Speeds = 7 (160-1,360 RPM)
Thread Cutting Range = 36 (4-120 TPI) 22 (0.2-6mm)
Automatic Feeding Range = 0.002-0.014" / 0.05-0.35mm
Drilling/Face Mill/End Mill Capacities = 7/8" / 1-1/8" / 3-1/8"
Max. Distance Spindle Nose To Milling Table = 12"
Drilling Speeds = 16 (120-3,000 RPM)
Motors (Lathe/Mill) = 3/4 HP, 110V, 9 Amp., 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 43" x 19-1/2" x 38" / 515 lbs
Package dimensions (LxWxH) = 45" x 23" x 42" / 615 lbs
DRILL PRESS QUILL TAPER = MT#3
