(Product may not be exactly as shown)

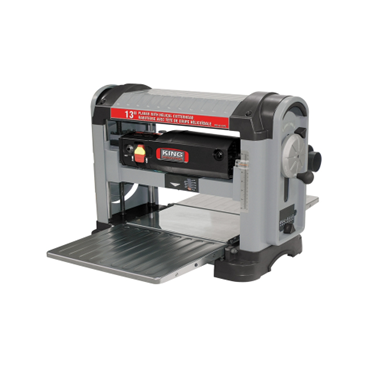

13" PLANER 15A 120V HELICAL CUTTERHEAD
Line Code / Manufacturer: KIC-
Item Code: KC-13HPC
Bin Location: 1D 231

List Price: $902.20
Price: $699.99
Price Per: 1
Description
13'' Planer With Helical Cutterhead

- Powerful 15 Amp. Motor with thermal overload protection
- Helical cutterhead for a superior finish
- Cutterhead raises and lowers on four precision ground columns for extra stability
- Thickness indicator and depth of cut indicator with graduated scale in inches and millimeters
- Pre-set depth stops for repeat cuts at 1/8", 1/4", 1/2", 3/4", 1", 1-1/4", 1-1/2" and 1-3/4"
- Exclusive 2 position dust chute. Closed position with 4" and 2-1/2" adapter outlets or open position for free flow chip ejection
- Comes with convenient side mounted tool storage box, cutter insert adjustment Torx key and adjustment hex. key

Maximum Planing Width = 13"
Maximum planing thickness = 6"
Number of cutter inserts = 26
Feed Rate = 26 FPM
Cutterhead Speed = 10,000 RPM
Motor = 15 Amp.
Voltage = 120V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 25-3/4" x 34" x 19-3/4" / 85 lbs
Package dimensions (LxWxH) = 26-7/8" x 15" x 22-1/2" / 90 lbs
