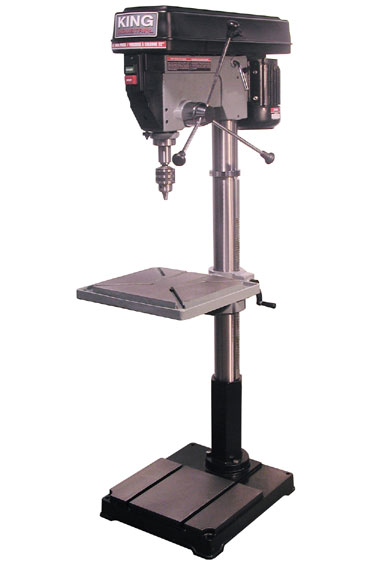

DRILL PRESS 22"1HP 12SP
Line Code / Manufacturer: KIC-
Item Code: KC-122FC
Bin Location: 9I 0

List Price: $1,774.35
Price: $1,299.00
Price Per: 1
Description
22" Drill Press

- Powerful 1 HP Motor
- Line interruption electro-mechanical switch needs a restart after a power failure
- Spindle is supported by high quality ball bearings
- Cast-iron pulleys reduce vibrations
- 45° tilting table for angular drilling
- Non-slip rubber feed handles
- 12 Speeds
- Light socket incorporated into drill press head (standard light bulb not included)

Capacity = 1-1/4"
Chuck Size = 3/4"
Swing = 22"
Stroke = 4-3/4"
Max. Distance From Chuck To Table = 21-3/4"
Max. distance from chuck to base = 41-7/8"
Table size = 18-3/4" x 16-1/4"
Size Of T-Slot On Table = 5/8"
Spindle Taper = MT #4
Quill Diameter = 75 mm
Speeds (RPM) = 12 (180 - 4,200)
Motor = 12.5 Amp.@110V, 6.25 Amp.@220V
Voltage = 110V/220V, 1 phase, 60Hz
Pre-Wired At = 110V
Assembled dimensions (LxWxH) = 18-3/4" x 33" x 69" / 320 lbs
