(Product may not be exactly as shown)

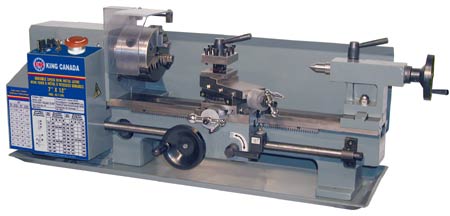

METAL LATHE
Line Code / Manufacturer: KIC-
Item Code: KC-0712ML
Bin Location: 5H 0

List Price: $1,473.61
Price: $1,099.00
Price Per: 1
Description
7" X 12" Variable Speed Mini Metal Lathe

- Safety guard with limit switch protection
- Line interruption switch system needs a restart after a power failure
- Variable Speed control - 0-2,500 RPM
- Forward/Reverse control
- Cuts imperial threads
- 1" x 8 TPI Spindle Thread
- Bedways are hardened and precision ground
- Comes complete with quick change gear box, face plate, steady rest, replacement gears, 4-way tool post, MT#2 dead center, threading dial indicator, 4"- 3 jaw chuck, emergency stop button, chuck key and hex. keys

Distance Between Centers = 12"
Swing Over Bed = 7"
Spindle Bore = 3/4"
Swing Over Cross Slide = 4-1/2"
Taper in headstock = MT #3
Taper in tailstock = MT #2
Width Of Bedways = 3-1/4"
Total Travel Of Cross Slide = 2-3/4"
Total Travel Of Top Slide = 3"
Spindle Variable Speed = 2 (0-1,100, 0-2,500) RPM
Thread Cutting Range = 12-52 TPI
Motor = 5.5 Amp.
Voltage = 110V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 32" x 11-1/2" x 13" / 85 lbs
Package Dimensions (LxWxH) = 29-1/4" x 12" x 12-1/2" / 88 lbs
