(Product may not be exactly as shown)

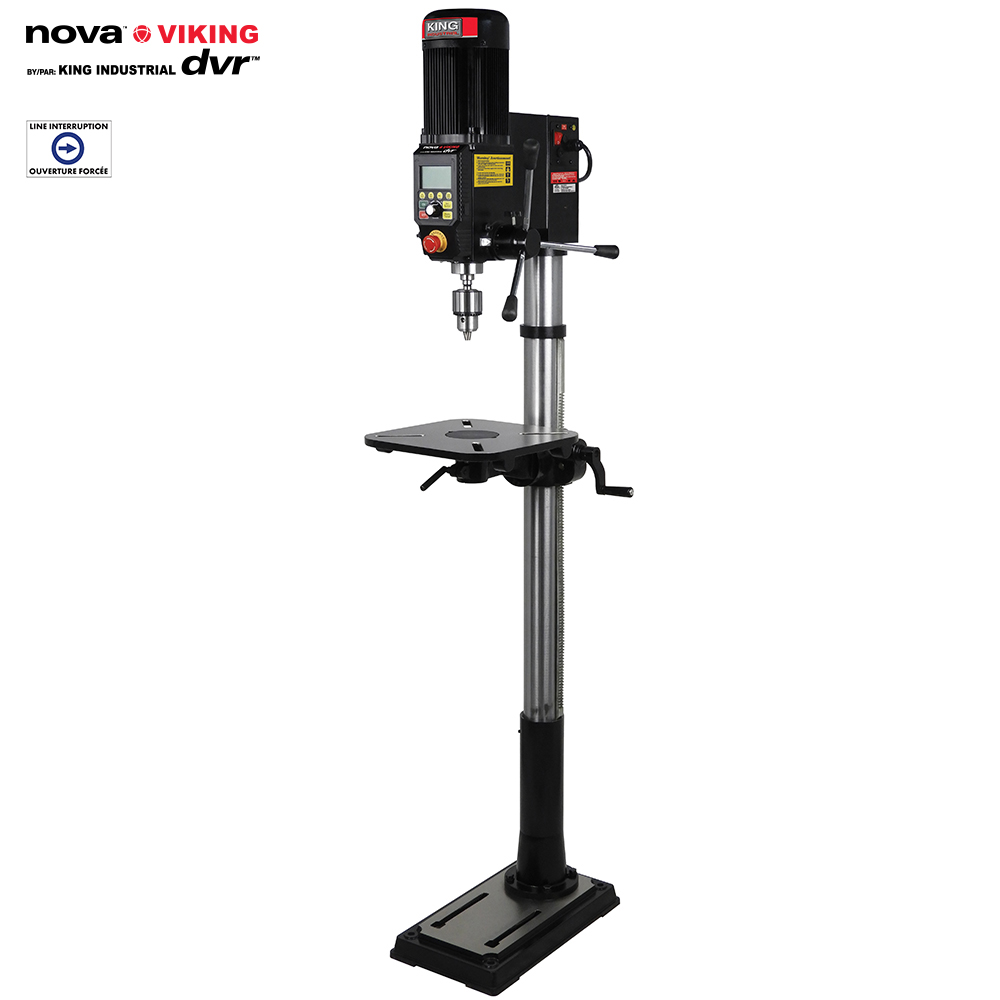

16" NOVA DRILL PRESS 5/8 CHUCK DIRECT DRIVE 1HP MOTOR
Line Code / Manufacturer: KIC-
Item Code: 83705
Bin Location: 9I 0

List Price: $2,405.90
Price: $1,799.00
Price Per: 1
Description
16" Nova Viking DVR floor model drill press

- Smart drill press combines common drill press features with state of the art technology
- Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration
- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
- Constant torque under load, depth and vibration sensors and emergency stop
Intelligent speed selection and dial knob for precise speed adjustments
- Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
- Electronic braking and forward/reverse
- Convenient LED light and twin laser guide system
- Comes with 5/8 drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys

Capacity = 5/8"
Chuck size = 5/8"
Swing = 16"
Max. distance chuck to table = 26-5/8"
Max. distance chuck to base = 46-3/4"
Stroke = 4-1/2"
Table size = 12-5/8" x 12-5/8"
Spindle taper = MT #2
Quill diameter = 60 mm
Variable speed range (optional setting) = 150 - 3,000 RPM (3,000 - 6,000)
Motor = 1 HP, 15 Amp.
Voltage = 120V, 60 Hz, 1 phase
Assembled dimensions (LxWxH) = 12-5/8" x 20" x 72" / 160 lbs
Package Dimensions (LxWxH) = 71-7/8" x 21-1/2" x 18-5/8" / 170 lbs
